E-Catalog > CNC Vertical Machining Center > Vertical Machining Center VMC-1300-1500
PAGE VIEW : 3,107
Product Information :
Name :

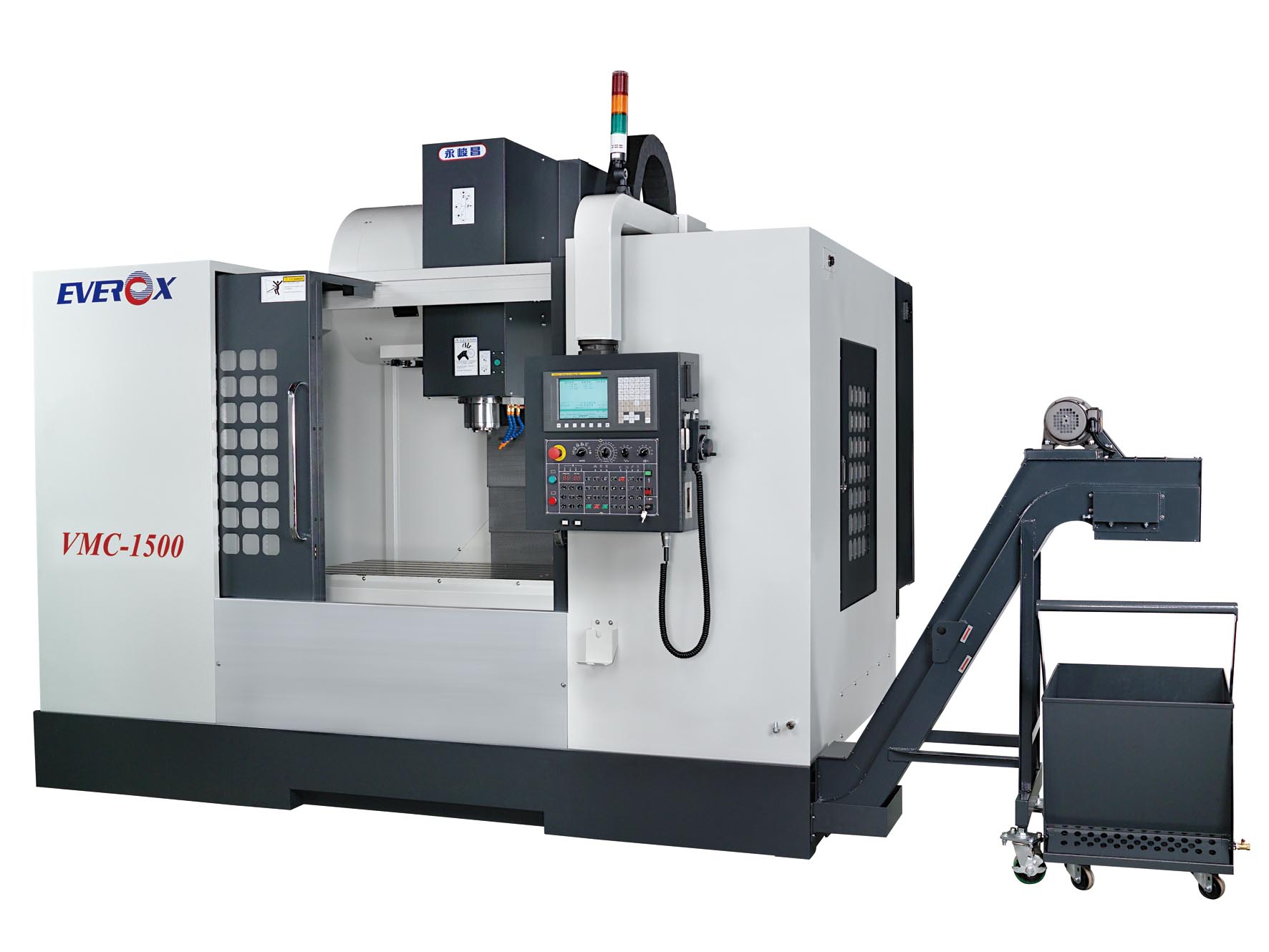

Vertical Machining Center VMC-1300-1500 Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- CNC Vertical Machining Center
Brand :
EVEROX Model :
VMC-1300-1500Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :

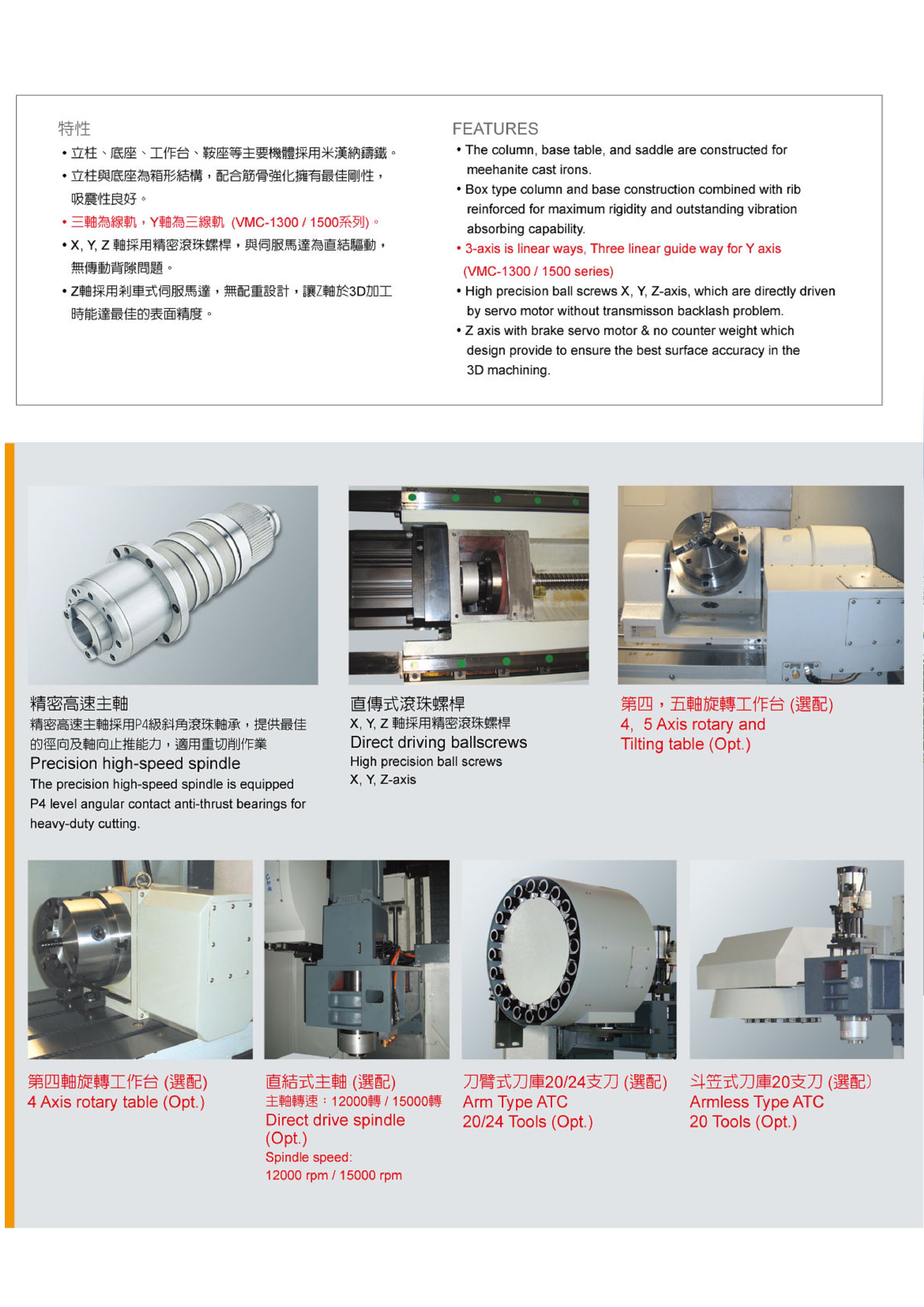

FEATURES:
1. The column, base table, and saddle are constructed for meehanite cast irons.
2. Box type column and base construction combined with rib reinforced for maximum rigidity and outstanding vibration absorbing capability.
3. 3-axis is linear ways, three linear guide way for Y axis (VMC-1300 / 1500 series)
4. High precision ball screws X, Y, Z-axis, which are directly driven by servo motor without transmission backlash problem.
5. Z axis with brake servo motor & no counter weight which design provide to ensure the best surface accuracy in the 3D machining. Product Detail :
