Vertical Machining Center MVC-1160G/1370G/1690G/1890GGearhead Way

1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล

1. CNC Vertical Machining Center

CHARLES

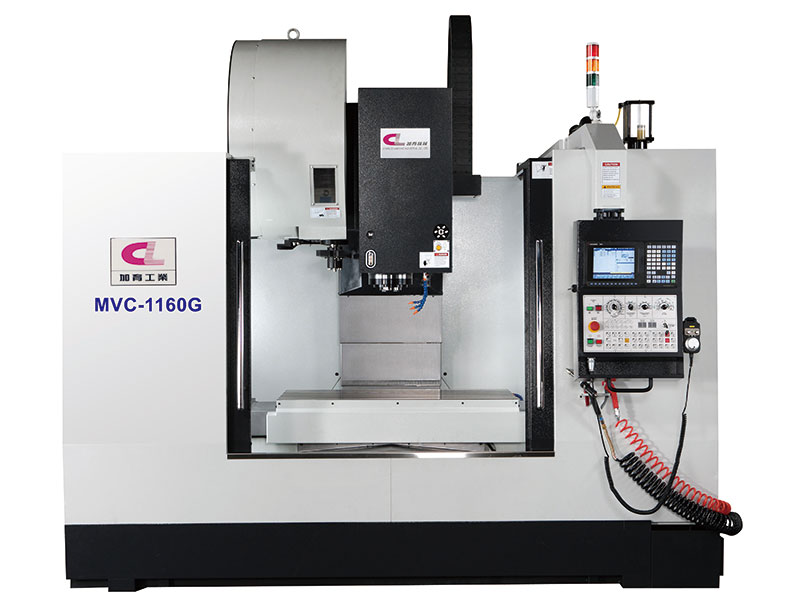

MVC-1160G/1370G/1690G/1890GGearhead Way

1. เครื่องมือ, เครื่องจักรและอุปกรณ์

Spindle bearing configuration is supported by the ball bearings which could withstand heavy cutting and due to the larger contact area, it could withstand greater axial and radial cutting force. Then, through the computer simulation of the bearing configuration to achieve the maximum spindle rigidity. Spindle double-speed gear with high-power spindle motor turns out to an unrivaled cutting rate. Spindle and gearbox with oil cooling cycle in order to maintain the bearings are under low temperature state and extend the its service life. STANDARD ACCESSORIES Alarm light Arm type ATC Remote MPG Full enclosure Rigid tapping Spindle oil cooler RS232 Interface Heat exchanger Coolant flushing system Auto lubricating system Auto power off system Metal telescopic cover Cutting liquid defector Screw type chip conveyor (with tank) Level adjusting bolts and pads Spindle auto flush / air blast device Handle flush and air blast device Tool box with tool kits OPTIONAL ACCESSORIES Air-conditioner Coolant ring Tool setter Rotary table Oil-water separator C.T.S (coolant thrugh spindle) Boat type chip conveyor (with tank) Spin window
