E-Catalog > Heavy Duty Bed Type Vertical Milling Machine > Heavy Duty Bed Type Milling Machine EM-3V-4V-5V
PAGE VIEW : 3,304
Product Information :
Name :

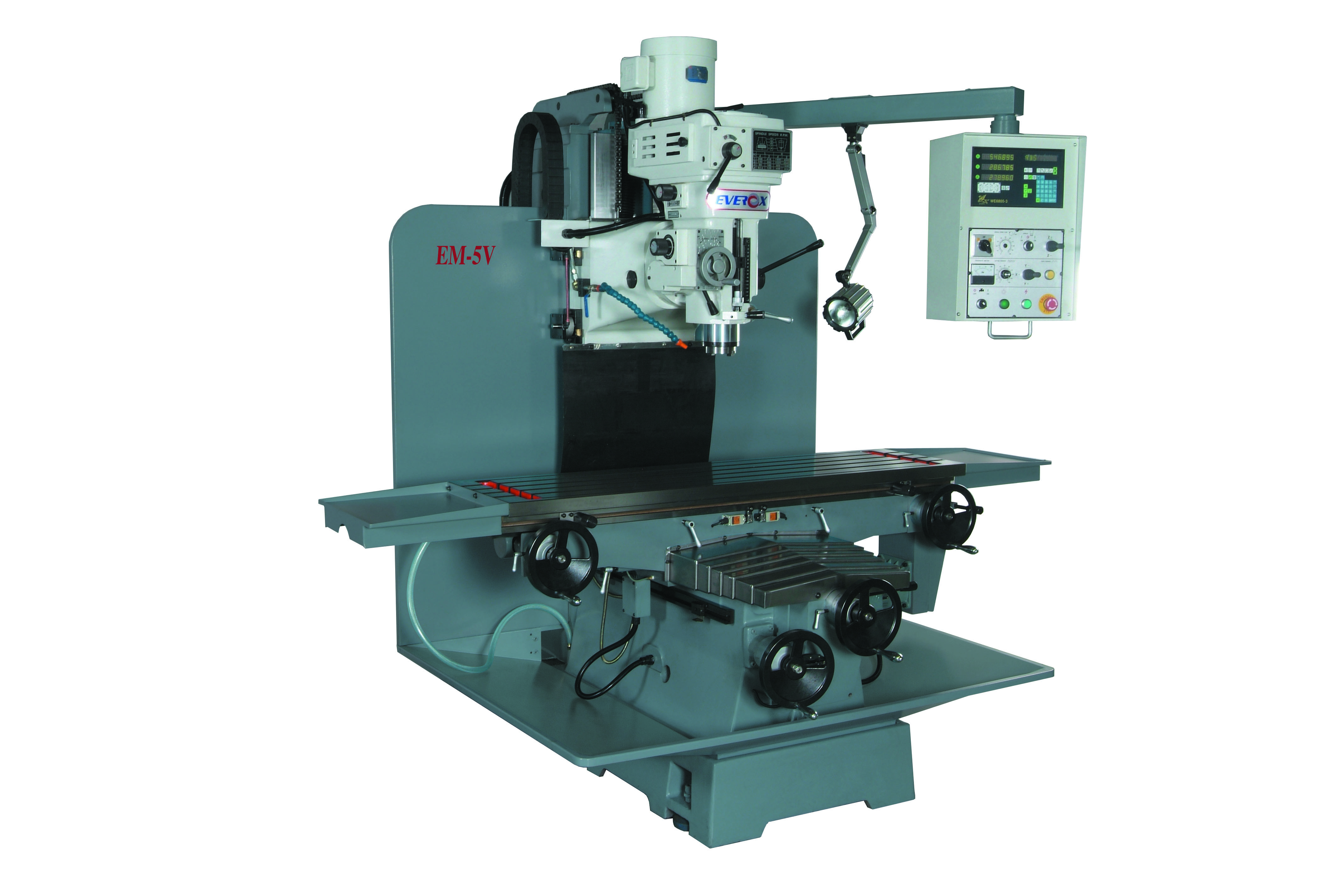

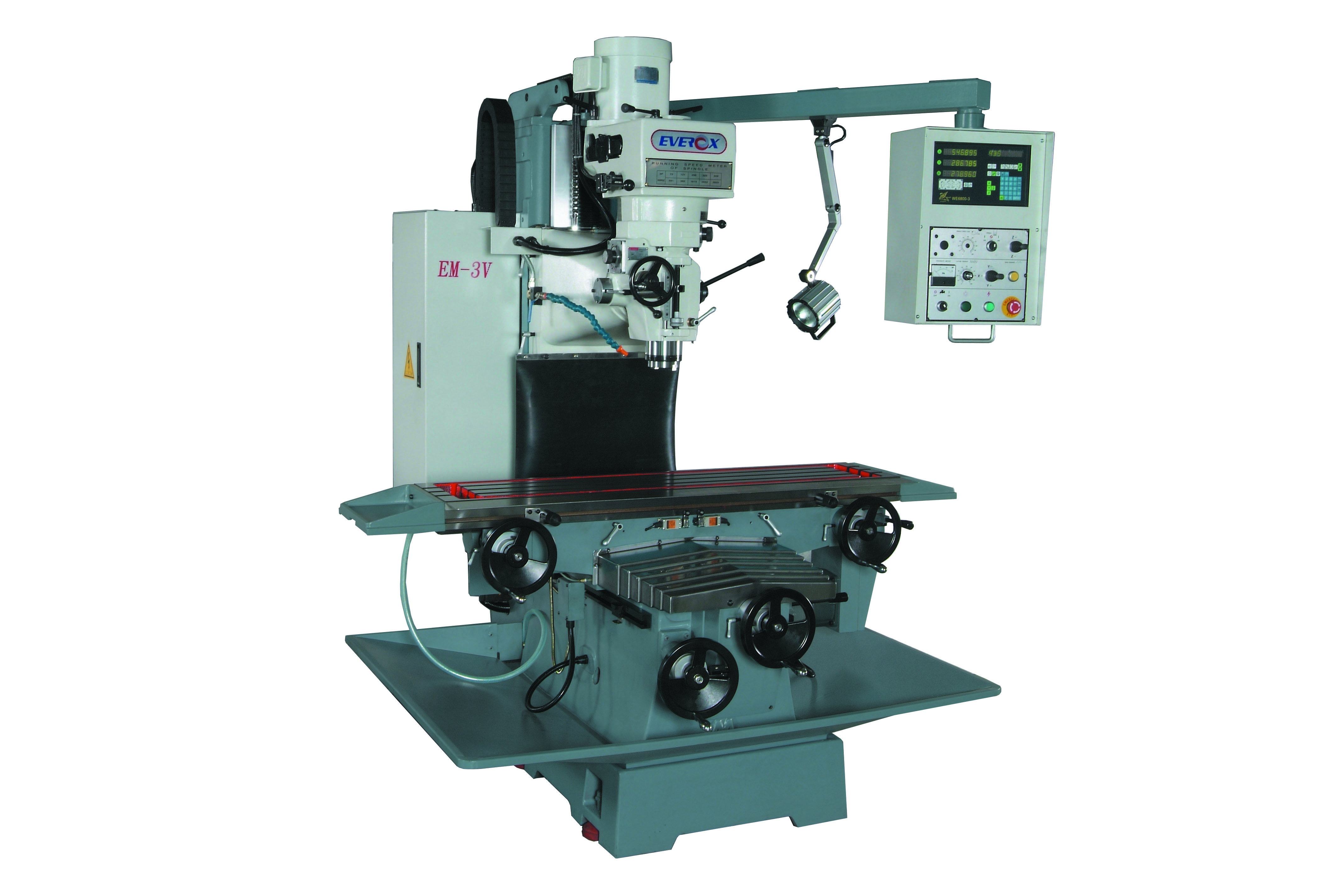

Heavy Duty Bed Type Milling Machine EM-3V-4V-5V Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- Heavy Duty Bed Type Vertical Milling Machine
Brand :
EVEROX Model :
EM-3V-4V-5VProduct Type :
- เครื่องมือ, เครื่องจักรและอุปกรณ์
Short Description :
EATURES:

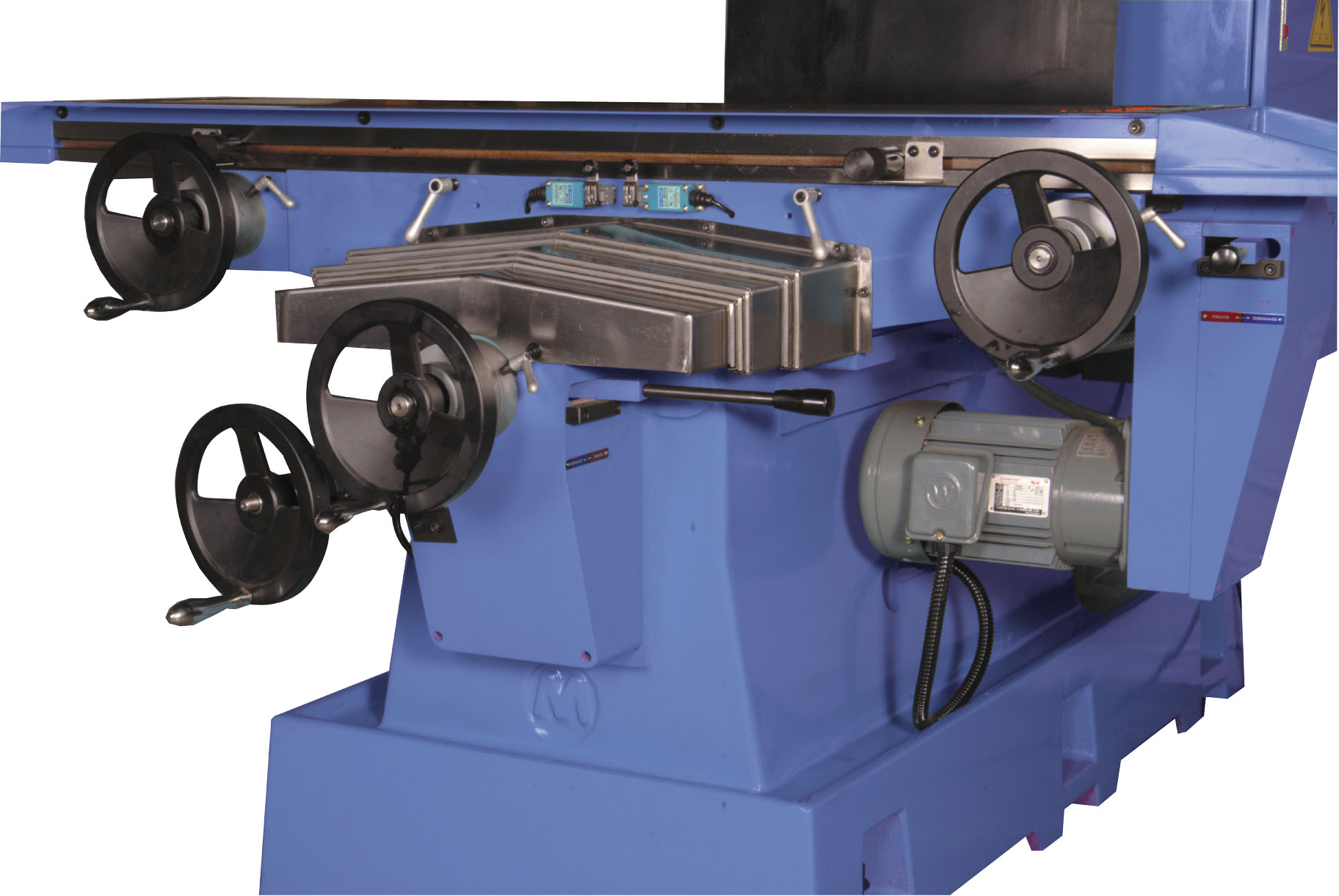

1. TWO HAND WHEEL: The X axis is designed two handle wheel for easy operation.
2. COLUMN: The bed and column are designed as box type with rigid structures. All the main components are made of FC-30 high quality casting and annealing heat treatment.
3. SADDLE: The saddles are designed with wide type for accuracy movement in all direction. The sliding surfaces are coated with turcite-B to ensure smooth and accuracy movement in long time.
4. BALL SCREW: Ball screw for 3-axis will increase work efficiency.
5. LUBRICATION: The automatic lubrication system with pressure gage, adjustable the timing and flow to provide the excellent lubrication oil onto all the sliding ways. Product Detail :
