E-Catalog > Heavy Duty Bed Type Vertical Milling Machine > HEAVY DUTY BED TYPE CNC MILLING MACHINE EMB-1360-1565-2065

PAGE VIEW : 509

Product Information :

Name :

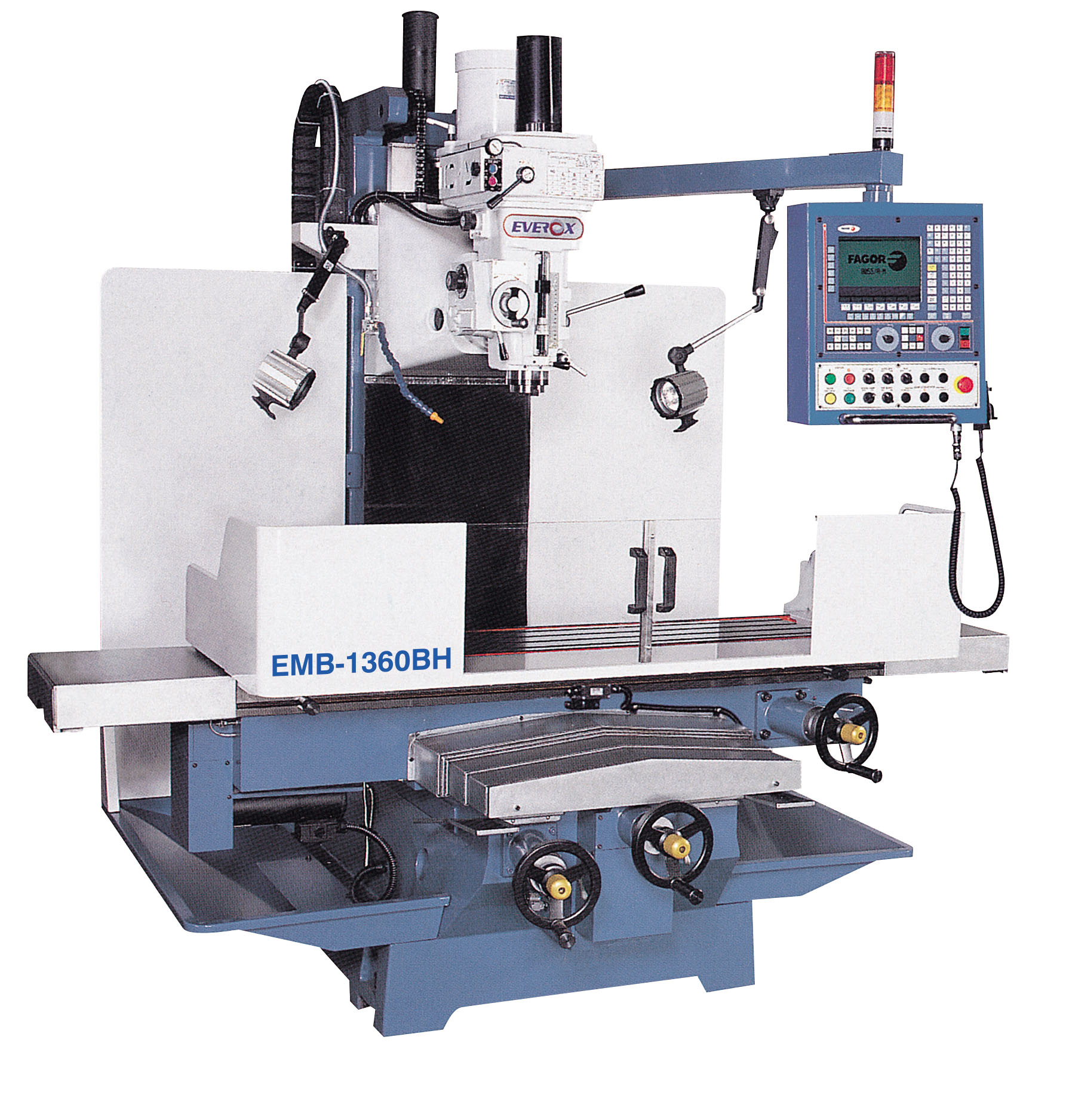

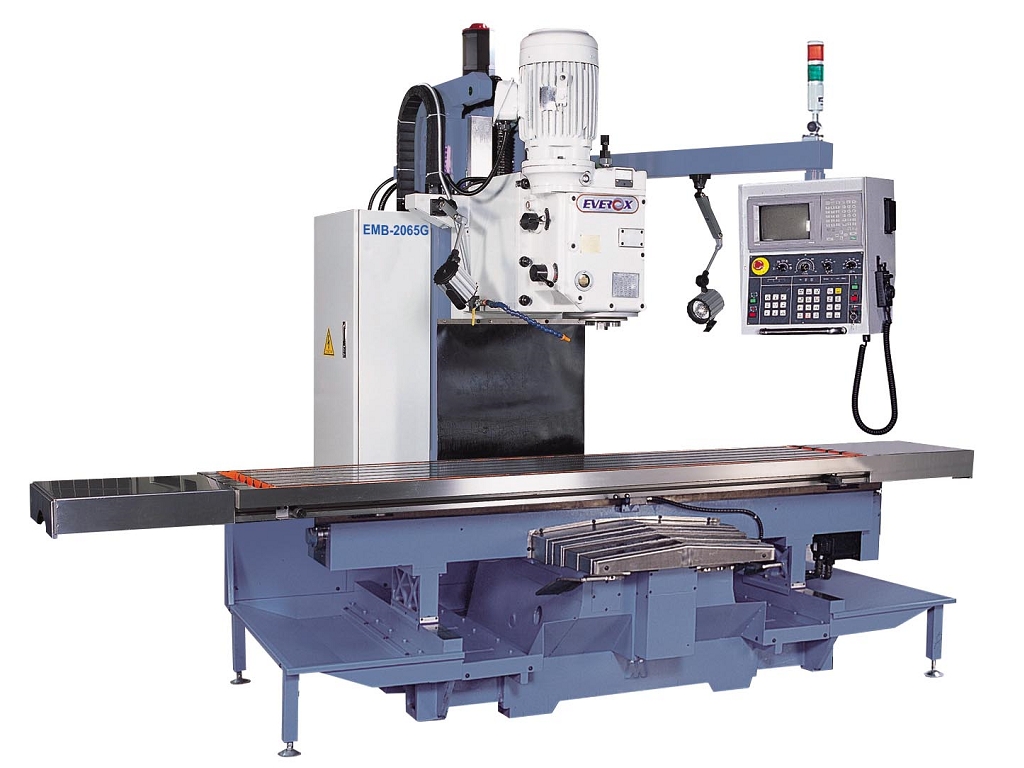

HEAVY DUTY BED TYPE CNC MILLING MACHINE EMB-1360-1565-2065
Category :
  1. เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
  1. Heavy Duty Bed Type Vertical Milling Machine
Brand :
EVEROX
Model :
EMB-1360-1565-2065
Product Type :
  1. เครื่องมือ, เครื่องจักรและอุปกรณ์
Short Description :
FEATURES: 1. Hi-rigidity machine structure designs and the main casting is made of meehanite cast iron which is annealed perfectly to eliminate internal residual stress. 2. Y, Z axis square rigid ways and dovetail slideway for saddle (X axis), furthermore, the all slideway be treated heat-treatment & precisely ground & scrapped etc. 3. Rugged stand & boxed structure column and integral heavy duty bed type designs and coupled reinforced ribs, advance machining servicing life & accuracy. 4. The spindle is made of SCM-21 steel and tempered stress relieved, carburized & precisely ground etc., and then, equipped with P4 level bearings, hi-precision.

Product Detail :
