E-Catalog > CNC Lathe Machine > CNC Lathe Machine EBL-1200-1400
PAGE VIEW : 3,932
Product Information :
Name :

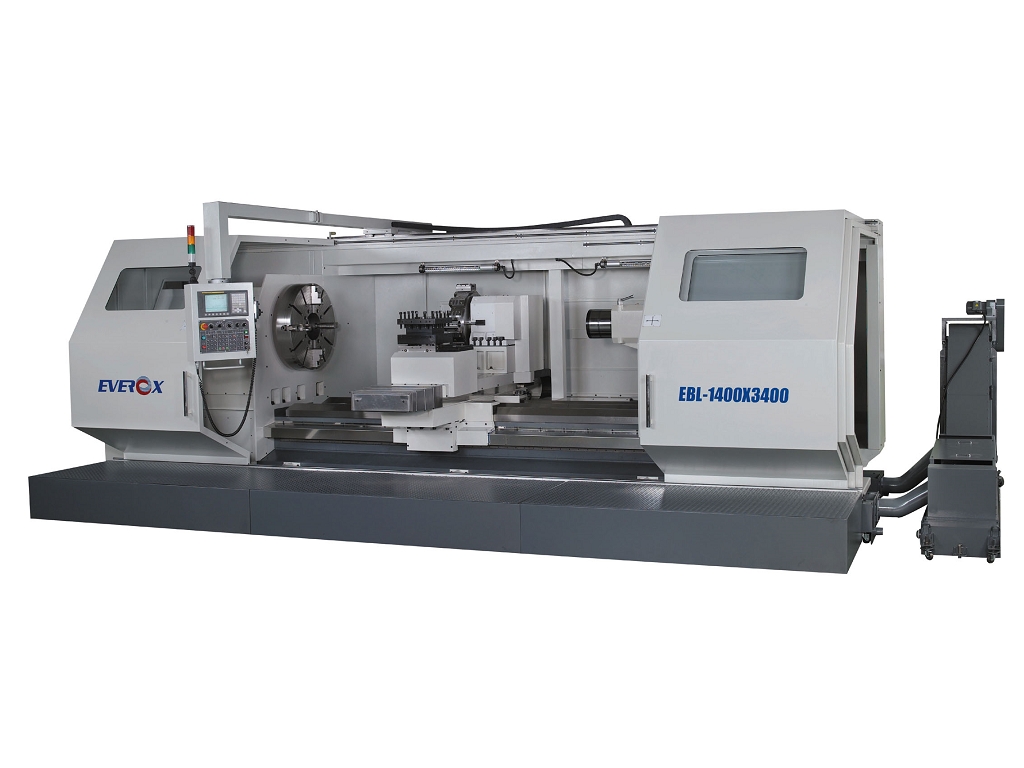

CNC Lathe Machine EBL-1200-1400 Category :
- เครื่องจักร, อุปกรณ์เกี่ยวกับเครื่องจักร, เครื่องมือกล
Sub - Category :
- CNC Lathe Machine
Brand :
EVEROX Model :
EBL-1200-1400Product Type :
- สินค้า, ผลิตภัณฑ์
Short Description :
FEATURES:
1. The spindle headstock: 3-point support design for the spindle, and 4-step gear change (hyd. System). Main spindle gear driven is M6 spiral gear.
2. The high rigidity square way design for the X axis, and it can minimized the distortion which is caused by the overhang of slide cover.
3. The tailstock and quill are compacted with fully hydraulic operation. (The tailstock body forward and backward, clamp and unclamp, quill extend and retract) The quill diameter isφ250mm (9.842”) and it is rotatable. The center taper MT6 is standard. And the manual tailstock lubrication is standard.
4. Floor type bed, 3V guide way design, the Z axis ball screw is mounted at front side of the bed. The optional of the second Z axis ball screw can be mounted at the rear side of the bed. The main feature is to reduce the displacement of cross slide. Product Detail :
